Feature:
An appearance design patent, reinforced nylon panel, wear-resistant and flame resistance
The plastic handle makes it easy to carry
Adopts IGBT module technology, energy-saving and stable heat dissipation
40% high-duty cycle, lower cost operation, superior output
A convenient quick connection for the output makes it quick, safe, simple, and stable
Digital LED display when used, starts with VRD
Featuring controlling knob
Hot striking ARC current is adjustable, greatly improving the ARC-starting function
Start ARC easily, stable welding ARC, anti-stick, deep weld pool, and beautiful welding shape

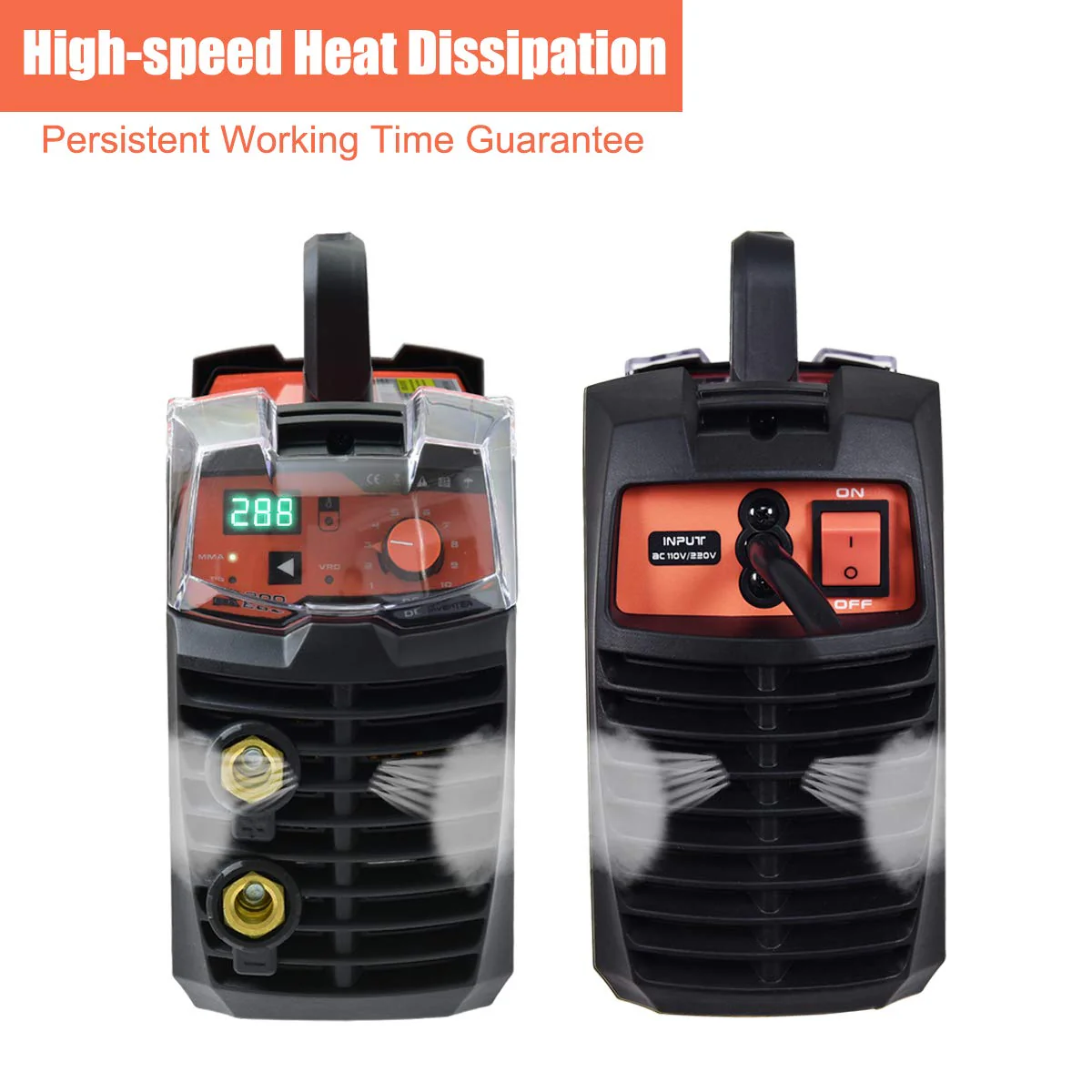

Efficient air-ejection and heat-ejection technology
Over-heating protection, over-voltage protection, over-current protection
Allow TIG welding
Excellent arc properties and solution droplet transfer

Specifications:
Weight: 24lbs
Weight capacity of each layer: 2.2lbs
Voltage: AC 110V/220V, 50-60H
No load Voltage(V): 80V
Rated input capacity(KVA): 9.6
Rated input current(A): 42
Output current range (A): 10-120/200
Rate duty cycle: 30% @ 200A
Duty cycle at 25 40%
Duty cycle at 104 30%
Output efficiency(%): 85%
Power factor: 0.76
Working temperature: 14-104 Celsius
Transportation and storage: -13-131 Celsius
Cooling way: Fan & air
IP Grade: IP21
Insulation class: F
Insulated grade: H
Cooling type: AF
Electrode size: 0.07"-0.2"
Overall dimensions: 13.4'' x 5.1'' x 8.7''
Package:
1 x Welding Machine
1 x Operator's manual
1 x Electrode holder
1 x Earth clamp
1 x Face mask with filter
1 x Brush & hammer
1 x 220V-110V adaptor with 12" cable
